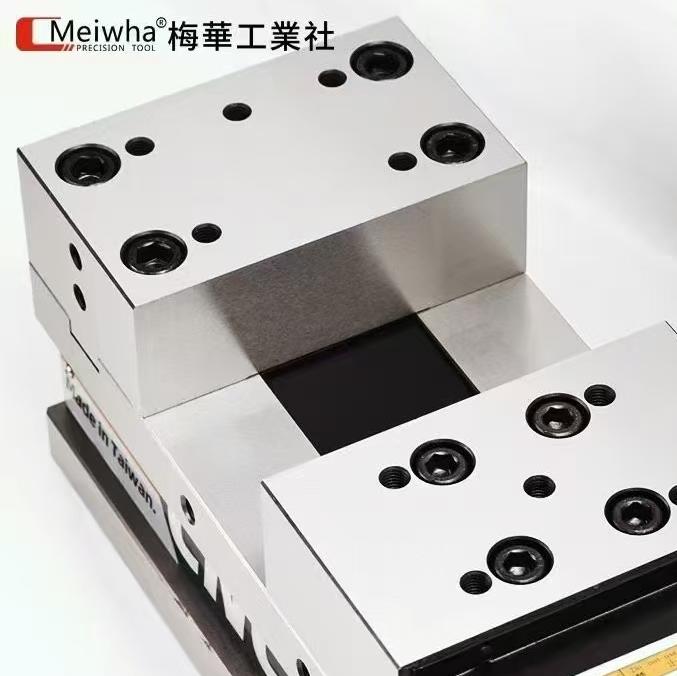

The angle-fixed MC flat jaw vise adopts an angle-fixed design. When clamping the workpiece, the upper cover will not move upward and there is a 45-degree downward pressure, which makes the workpiece clamping more accurate.
Features:
1). Unique structure, the workpiece can be clamped strongly, and the maximum clamping force is up to 8 tons
2). Ensure the corresponding verticality and parallelism, the parallelism of the two jaws, and the verticality of the two jaws to the guide surface ≤ 0.025mm/100mm.
3). Hardened fine steel, high-quality cast iron material.
Use:
1) When clamping the workpiece, the tightness should be appropriate. Only the handle can be tightened by hand, and no other tools should be used to apply force.
2) When working with force, the force should be directed to the fixed clamp body as much as possible.
3) The active surfaces such as the lead screw and nut should be cleaned and lubricated frequently to prevent rust.
Features of MC precision vise:
1. An angle fixing device is attached to prevent the clamped workpiece from floating up. The greater the clamping force, the greater the downward pressure.
2. The body and the fixed vise mouth are integrated, so it is relatively effective to prevent the tilting of the vise body.
3. The vise body is a vertical rib structure, which has a large bending resistance to the vise itself. When the opening is clamped, the bending amount generated is almost negligible.
4. The surface that is in constant contact with the workpiece (jaw plate) and the sliding surface of the Beili vise are heat-treated with excellent wear resistance, and the hardness is above HRC45 degrees.
5. Under the condition of long-term processing of workpieces, the pressure value of MC Beili vise remains more stable than that of hydraulic booster vise.
